AlphaLISA Human LC3B Detection Kit, 5,000 Assay Points

AlphaLISA® no-wash immunoassay kit for detection of human LC3B in buffered solution or cell lysates. The antibodies in the kit detect both LC3B type I and type II. The analyte in this kit consists of recombinant LC3B fused to His-tag at the N-terminus.

For research use only. Not for use in diagnostic procedures. All products to be used in accordance with applicable laws and regulations including without limitation, consumption & disposal requirements under European REACH regulations (EC 1907/2006).
Part Number: AL306C
Unit Size: 500 assay points
Part Number: AL306F
Unit Size: 5,000 Assay Points
  • Formats:

    • Our 500 assay point kit allows you to run 500 wells in 96-well or 384-well format, using a 50 µL reaction volume (5 µL of sample).
    • Our 5,000 assay point kit allows you to run 5,000 wells in 96-well or 384-well format, using a 50 µL reaction volume (5 µL of sample).


    • No-wash steps, no separation steps
    • ELISA alternative technology
    • Sensitive detection
    • Broad sample compatibility
    • Small sample volume
    • Results in less than 3 hours
    • Half the time of an ELISA assay

    LC3 represents a mammalian homologue of the yeast autophagy related gene ATG8. It was originally characterized as light chain 3 of the microtubule associated protein 1 (MAP1LC3). The protein family consists of LC3 A, B, and C and the GABARAP subfamily. Human LC3B is 125 amino acids long. After synthesis, it is cleaved by ATG4B to expose a C-terminal glycine, representing the cytosolic form LC3B I. During autophagy the C-terminus is covalently linked to autophagosomal vesicle membranes via a phospholipid anchor and this form is called LC3B II. The transformation of LC3B I to II is mediated by a ubiquitination-like process involving ATG7 (E1), ATG3 (E2) and the ATG16L complex (E3). To date, LC3B is considered as the most persistent marker of the autophagy pathway.

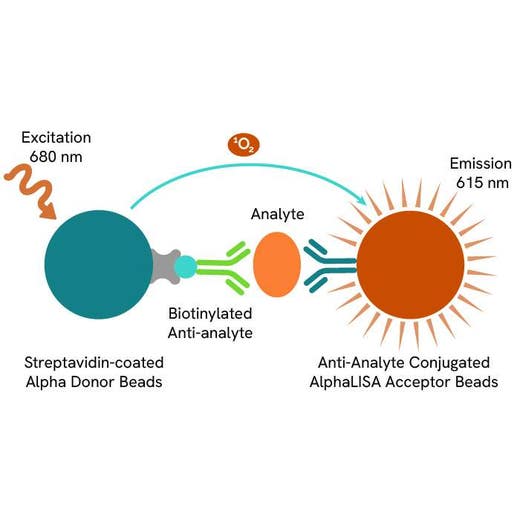

    AlphaLISA technology allows the detection of molecules of interest in a no-wash, highly sensitive, quantitative assay. In an AlphaLISA assay, a biotinylated anti-analyte antibody binds to the Streptavidin-coated Donor beads while another anti-analyte antibody is conjugated to AlphaLISA Acceptor beads. In the presence of the analyte, the beads come into close proximity. The excitation of the Donor beads causes the release of singlet oxygen molecules that triggers a cascade of energy transfer in the Acceptor beads, resulting in a sharp peak of light emission at 615 nm.

  • Application
    Protein Analysis & Detection
    Assay Points
    Assay Target Class
    Automation Compatible
    Detection Method
    Experimental Type
    In vitro
    Shipping Conditions
    Shipped in Blue Ice
    Unit Size
    5,000 Assay Points
