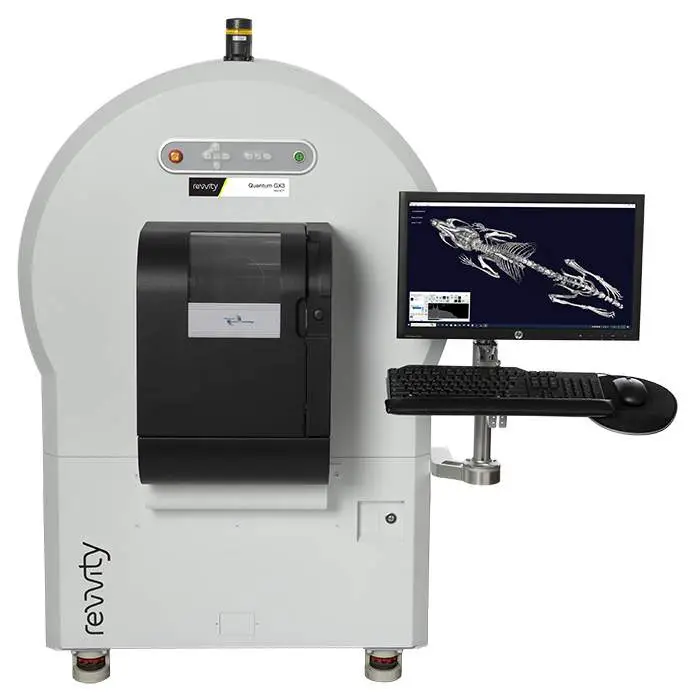

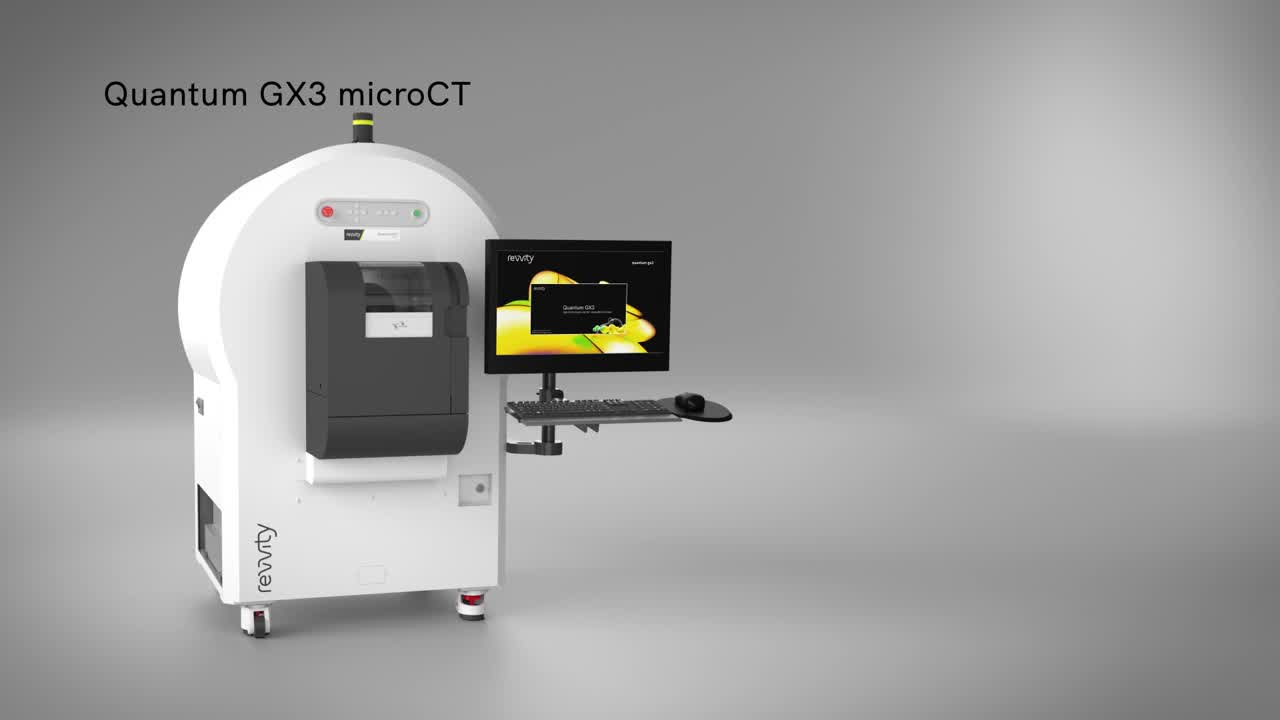

Quantum GX3 microCT imaging system
Co-registration of lung tumor imaged on Quantum GX2 microCT and IVIS Spectrum optical systems

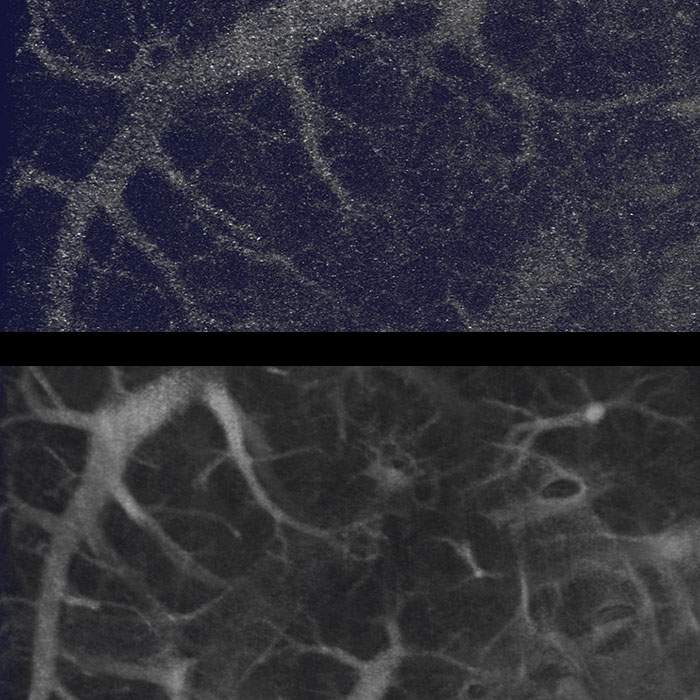

Continuous vs step scanning on Quantum GX3 microCT system
Mouse spine imaged on the Quantum GX3 microCT system

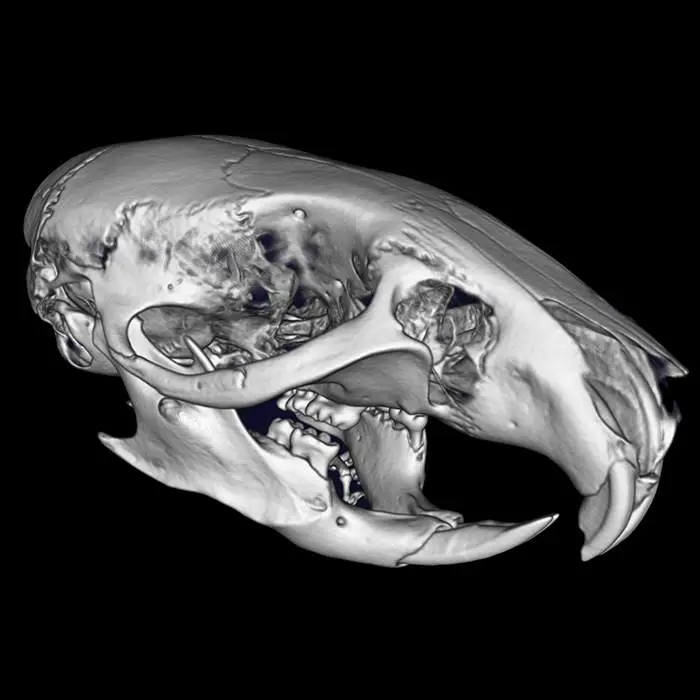

Mouse skull imaged using Quantum GX3 microCT system

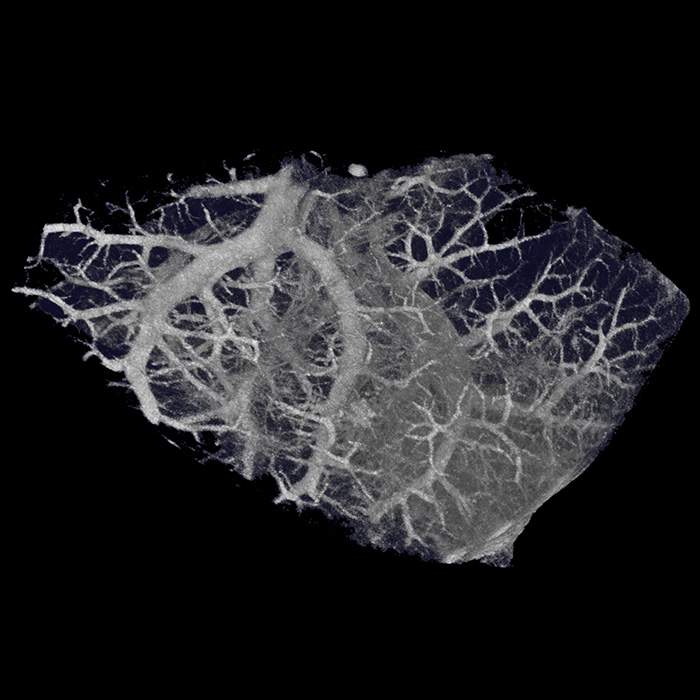

Mouse lung imaged using Quantum GX2 microCT system

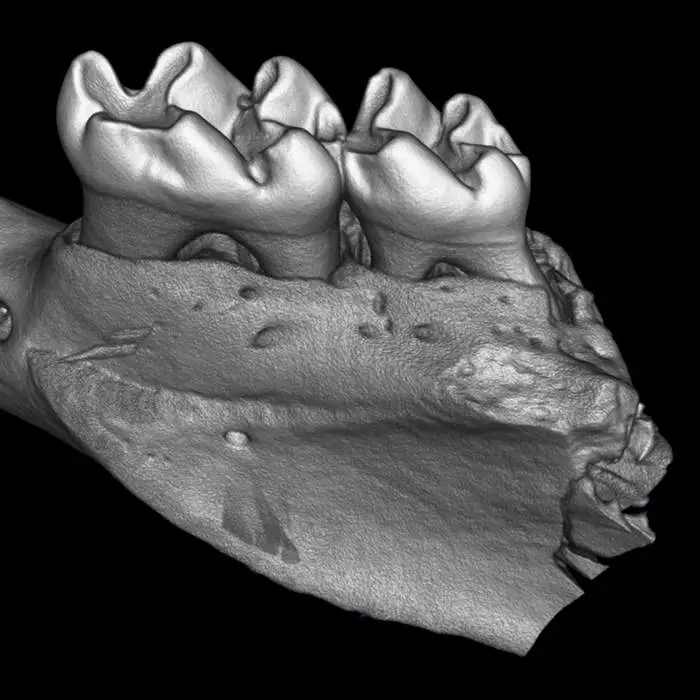

Mouse jaw image on the Quantum GX3 microCT system

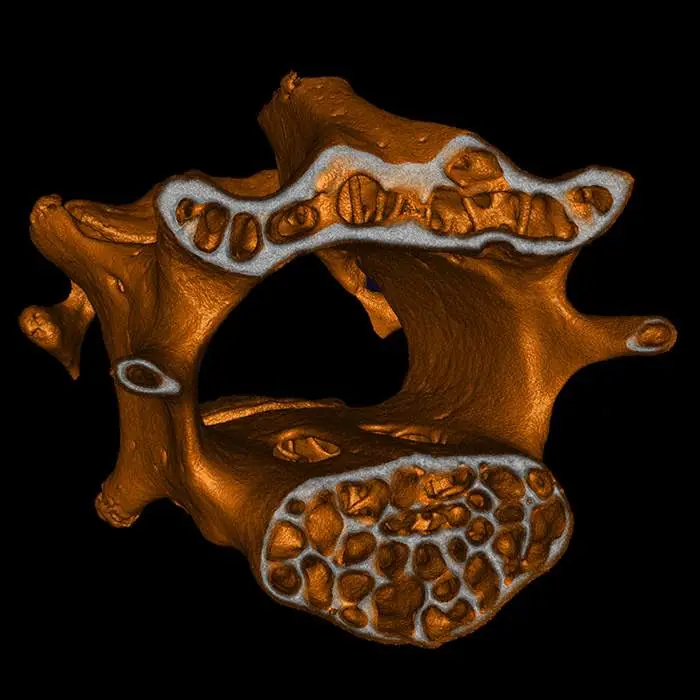

Mouse vertebrae imaged on the Quantum GX3 microCT system

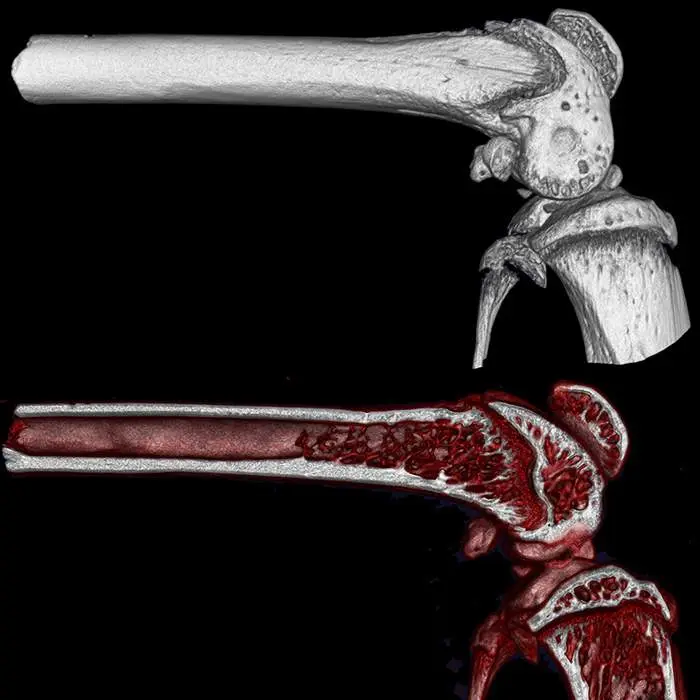

Quantum GX3 microCT cortical and trabecular scan of mouse knee

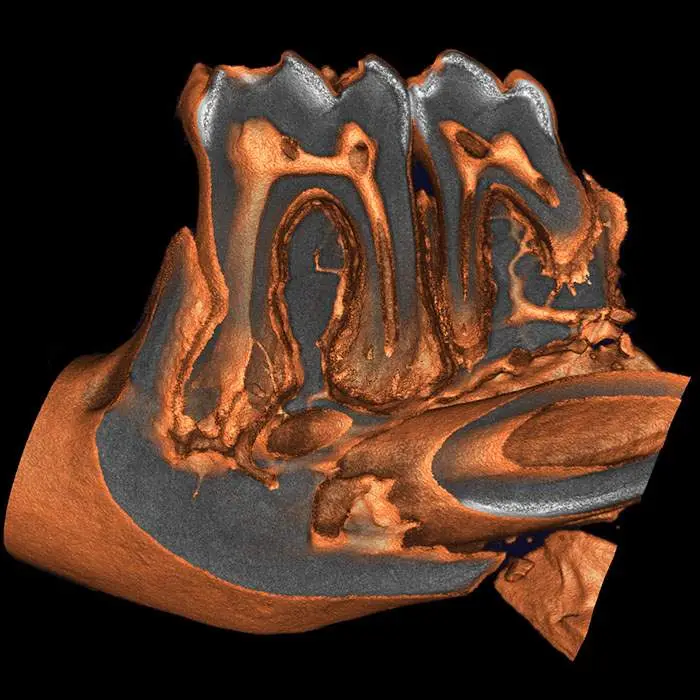

Mouse tooth showing root canals. Imaged on Quantum GX3 microCT
Active ring reduction (ARR) on Quantum GX3 microCT system
Image-based retrospective respiratory gating on Quantum GX3 microCT system
Quantum GX3 microCT imaging system
Co-registration of lung tumor imaged on Quantum GX2 microCT and IVIS Spectrum optical systems
Continuous vs step scanning on Quantum GX3 microCT system
Mouse spine imaged on the Quantum GX3 microCT system
Mouse skull imaged using Quantum GX3 microCT system
Mouse lung imaged using Quantum GX2 microCT system
Mouse jaw image on the Quantum GX3 microCT system
Mouse vertebrae imaged on the Quantum GX3 microCT system
Quantum GX3 microCT cortical and trabecular scan of mouse knee
Mouse tooth showing root canals. Imaged on Quantum GX3 microCT
Active ring reduction (ARR) on Quantum GX3 microCT system
Image-based retrospective respiratory gating on Quantum GX3 microCT system
Quantum GX3 microCT imaging system
Co-registration of lung tumor imaged on Quantum GX2 microCT and IVIS Spectrum optical systems
Continuous vs step scanning on Quantum GX3 microCT system
Mouse spine imaged on the Quantum GX3 microCT system
Mouse skull imaged using Quantum GX3 microCT system
Mouse lung imaged using Quantum GX2 microCT system
Mouse jaw image on the Quantum GX3 microCT system
Mouse vertebrae imaged on the Quantum GX3 microCT system
Quantum GX3 microCT cortical and trabecular scan of mouse knee
Mouse tooth showing root canals. Imaged on Quantum GX3 microCT
Active ring reduction (ARR) on Quantum GX3 microCT system
Image-based retrospective respiratory gating on Quantum GX3 microCT system
Quantum GX3 microCT imaging system
Co-registration of lung tumor imaged on Quantum GX2 microCT and IVIS Spectrum optical systems
Continuous vs step scanning on Quantum GX3 microCT system
Mouse spine imaged on the Quantum GX3 microCT system
Mouse skull imaged using Quantum GX3 microCT system
Mouse lung imaged using Quantum GX2 microCT system
Mouse jaw image on the Quantum GX3 microCT system
Mouse vertebrae imaged on the Quantum GX3 microCT system
Quantum GX3 microCT cortical and trabecular scan of mouse knee
Mouse tooth showing root canals. Imaged on Quantum GX3 microCT
Active ring reduction (ARR) on Quantum GX3 microCT system
Image-based retrospective respiratory gating on Quantum GX3 microCT system

This product replaces the Quantum™ GX2 (part # CLS149276)

The Quantum GX3 - advanced microCT system for ex vivo and in vivo imaging. The versatile Quantum GX3 microCT offers the flexibility researchers need by delivering the functionality to perform longitudinal studies, across a wide range of species, with fast, low-dose scanning and superior spatial resolution.

For research use only. Not for use in diagnostic procedures.
Product information SDS, COAs, Manuals and more
Request a Quote Request More Information

Product information

Overview

The Quantum GX3 system represents the latest advances in microCT imaging with superior image resolution, high speed, low-dose, and flexibility.

With the combination of higher resolution, increased field of view (FOV) range, and enhanced image-based respiratory and cardiac gating, the Quantum GX3 low-dose microCT system enables researchers to gain a better understanding of healthy and diseased tissue in a broad range of areas including bone, respiratory, cardiovascular, liver/kidney, brain, and oncology research.

Additional product information

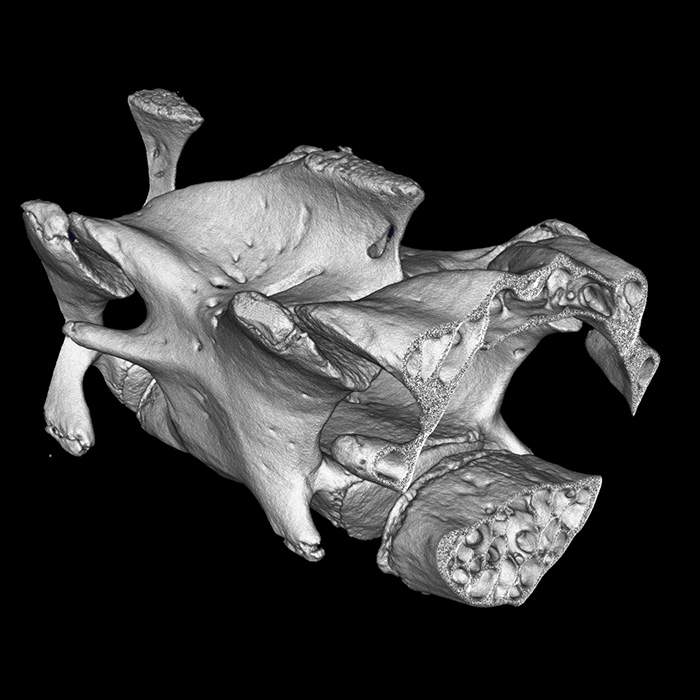

spine cross cut
Superior Spatial Resolution

The Quantum GX3 microCT system offers exceptionally high spatial resolution down to 5 µm and pixel size of 2.86 µm (at 8 mm field of view) enabling high image quality of ex vivo biological samples, small bones and fine anatomical structures in vivo in greater detail.

Wide FOV Range

With a wide range of field of view (FOV), the Quantum GX3 gives you the flexibility needed to choose the right balance of resolution and pixel size depending on the size of the specimen or part of the animal needing to be imaged.

The variable FOV ranging from 8 mm for imaging ex vivo biological samples, to the largest FOV of 86 mm, ideal for imaging lungs of larger animals in a single scan, the Quantum GX3 is the most versatile microCT on the market.

ex vivo mouse rat guinea pig

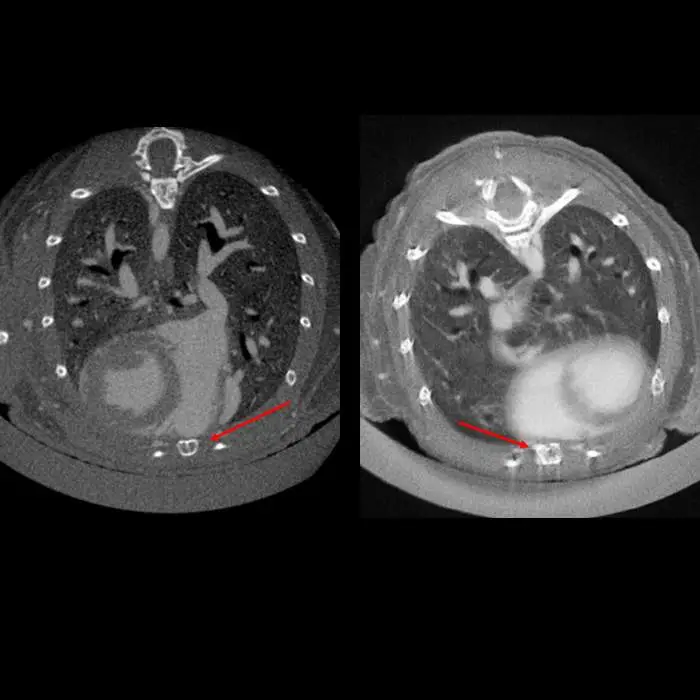

lung ungated vs gated
Improved Image-based Gating

Accurate microCT reconstructions often require reducing motion artifacts due to cardiac and respiratory motion. Using a retrospective two-phase image-based gating technique, the Quantum GX3 enables superior cardiac and lung function measurements for a range of species, including mice, rats, and ferrets.

Two Scanning Modes

With the Quantum GX3, researchers have the option of selecting either continuous scanning mode for high throughput fast image acquisition or step scanning mode for higher resolution imaging.

continuous and step scan
spectrum gx3 cropped

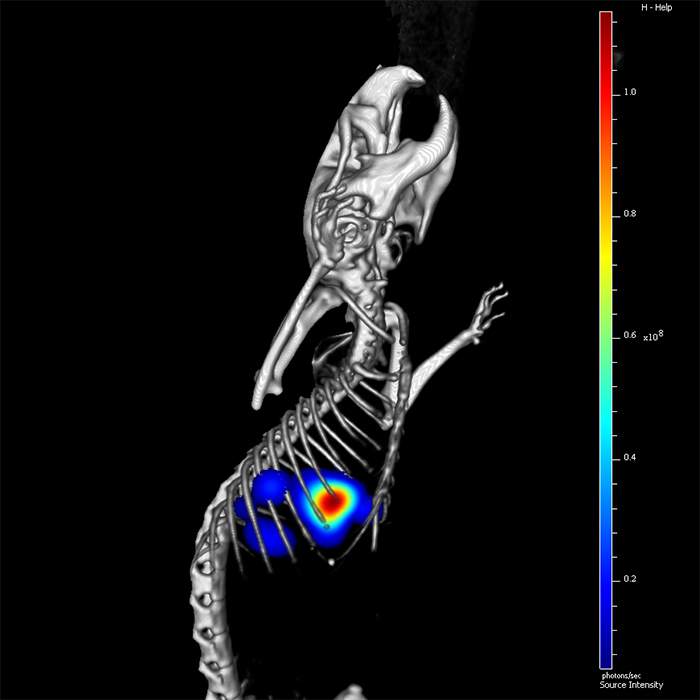

Easy Co-registration

Seamless co-registration of data from the Quantum GX3 can be easily combined with readouts from Revvity’s IVIS® 3D optical system providing more comprehensive insights into the molecular and anatomical features of diseased and healthy biology in the same subject.

Analysis at Your Fingertips

With the convenience of the touchscreen monitor, data capture and analysis on the Quantum GX3 has never been easier. Reconstructions are automatically created within seconds of scanning and basic analysis tools allow you to visualize tissue densities, make quantitative measurements, and export for further analysis in DICOM format. Compliment your microCT data and take your analysis to the next level with Analyze 14.0 software for advanced imaging visualization and measurements.

analyze gx3



Features Benefits
CMOS flat panel detector, 14-bit Delivers robust, reliable, and high-quality images
X-ray source (20-100 kV, 200 uA, 20 W) Increased x-ray penetration for imaging dense tissue resulting in better signal-to-noise and superior images
5 Field of Views (8, 18, 36, 72, 86 mm) Imaging of a wide range of animals and specimens
Spatial Resolution (5 µm | 2.86 µm smallest pixel size) Superior resolution for visualizing anatomical features in greater detail
Scan times (3.9 sec – fastest)
  • High speed imaging minimizes x-ray exposure to the subject-ideal for longitudinal studies or immuno-compromised animals
  • Increases throughput accelerating research & development
Reconstruction times (6 sec – fastest) Increases throughput accelerating research & development
6 changeable filters with automatic sensing Software verification of filter selection to ensure correct filter is being used for the imaging study
Respiratory and cardiac gating TestImage-based retrospective cardiac and respiratory gating in mice, rats, and ferrets
Continuous and step scanning modes Option of continuous mode for faster acquisition or step mode for higher resolution imaging

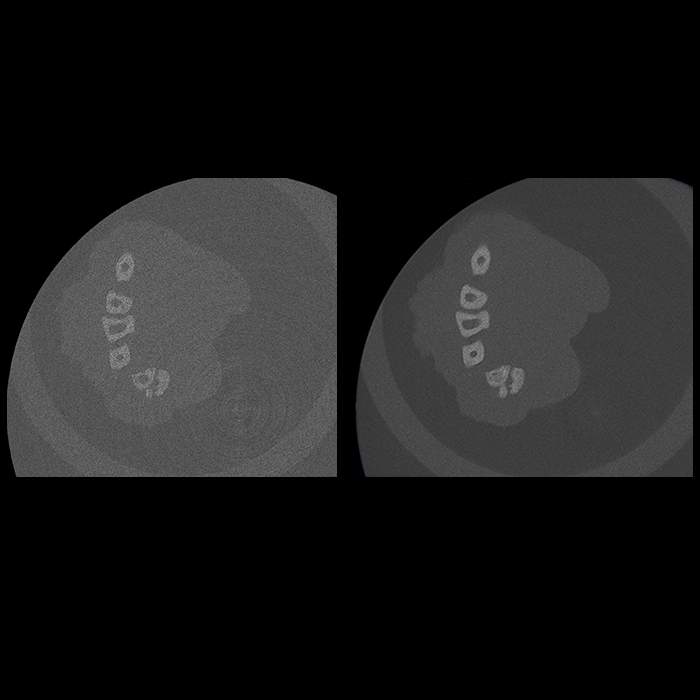

Active ring reduction Automatically removes ring artifacts for increased image quality
Touchscreen monitor Easy to use and interactive
Co-registration Easily combine data from the Quantum GX3 with IVIS® 3D optical data to obtain both functional and anatomical readouts from the same animal



Specifications

Height
1536.0000 mm
Width
980.0000 mm
Brand
Quantum
Imaging Modality
microCT Imaging
Unit Size
1 Unit
Weight
530.0 kg
