HTRF cAMP Gs Dynamic Detection Kit, 1,000 Assay Points

This HTRF kit detects changes of cAMP accumulation in response to Gs coupled GPCR activation or inhibition

For research use only. Not for use in diagnostic procedures. All products to be used in accordance with applicable laws and regulations including without limitation, consumption and disposal requirements under European REACH regulations (EC 1907/2006).

Product Variants
Part number: 62AM4PEB
Unit Size: 1,000 Assay Points
List price: USD 859.13
Your price: Login to view
USD 859.13
USD 859.13 /each
Part number: 62AM4PEC
Unit Size: 20,000 Assay Points
List price: USD 5,350.00
Your price: Login to view
USD 0.00
USD 5,350.00 /each
Don't forget your microplates
ProxiPlate-384
Part number: 6008280
List price: USD 562.10
Your price: Login to view
USD 0.00
USD 562.10 /each
ProxiPlate
Part number: 6008289
List price: USD 1,877.00
Your price: Login to view
USD 0.00
USD 1,877.00 /each
HTRF
Part number: 66PL96005
List price: USD 87.07
Your price: Login to view
USD 0.00
USD 87.07 /each
HTRF
Part number: 66PL96025
List price: USD 301.06
Your price: Login to view
USD 0.00
USD 301.06 /each
HTRF
Part number: 66PL96100
List price: USD 936.76
Your price: Login to view
USD 0.00
USD 936.76 /each

Overview

Based on HTRF technology, the kit contains all the reagents needed to quantify cAMP, ensuring that you benefit from a complete tool for your needs.

Revvity's HTRF cAMP kits are best suited for measuring cAMP modulations in response to Gs-activation, leveraging an optimized combination of robustness and sensitivity

Specifications

Assay Points
1000
Assay Technology
HTRF
Brand
HTRF
Product Group
Kit
Quantity
1
Shipping Conditions
Shipped Ambient
Therapeutic Area
Cardiovascular
Infectious Diseases
Metabolism/Diabetes
NASH/Fibrosis
Neuroscience
Oncology & Inflammation
Rare Diseases
Unit Size
1,000 Assay Points

Video gallery

Citations

How it works

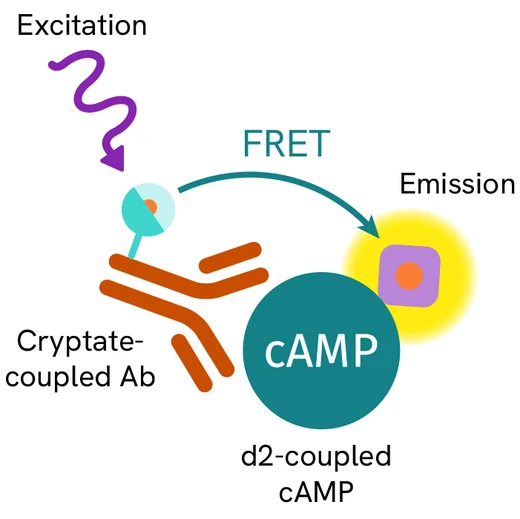

Assay principle

cAMP kits are based on a competitive format involving a specific antibody labeled with cryptate (donor) and cAMP coupled to d2 (acceptor). This enables the direct characterization of all types of compounds acting on Gs-coupled receptors in either adherent or suspension cells. Native cAMP produced by cells competes with d2-labeled cAMP for binding to monoclonal anti-cAMP Eu3+ cryptate.

GPCR how it works assay principle camp gs dynamic 62am4peb
Assay protocol

The protocol is simple and straightforward, with just two incubation steps: - Cell stimulation by the target compounds - cAMP detection using HTRF reagents

GPCR how it works assay protocol camp gs dynamic 62am4peb



Assay details

cAMP Gs dynamic product specifications

Use this optimized kit to study your most challenging and precious cellular models. Designed to produce results with minimal cell consumption, this kit features the lowest nanomolar IC50.

Left-shifted IC50 enables you to quantify lower cAMP concentrations, significantly reducing the number of cells required.

Specifications camp gs dynamic 1
  S/B IC20 nM IC50 nM IC80 nM
cAMP - Gs dynamic >14 0.91 4.07 18.1
cAMP - Gs HiRange >28 4.27 22.8 121





Assay validation

Validation on agonist dose response

HEK293 cells expressing the endogenous ß2 adrenergic receptor were treated with the isoproterenol agonist for 45min.

Isoproterenol was well characterized, displaying the right potency in good correlation with the literature.

Assay validation camp gs dynamic 1
Validation on antagonist dose response

HEK293 cells at 7,500 cells/well (optimal cellular concentration situated in the dynamic range of the kit) were treated with a serial concentration of isoproterenol, a beta 2 adrenergic receptor full-agonist.

The EC80-EC90 was determined to choose the optimal agonist concentration to use for the antagonist mode experiment.

Fitting the serial dilution of the antagonist allowed IC50 calculation for the compounds (potency) which was in perfect correlation with the literature.

Assay validation camp gs dynamic 2
