Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
View All
Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
Pipetting reservoir with a single well of 100 mL total volume, for pipetting, multi-channel pipetting and automated liquid handling. Designed to fit low volume (50 µL) or less automated pipetting tips.
| Feature | Specification |
|---|---|
| Surface Treatment |
Anti-static DNase, RNase free |
| Color | Natural |
| Lids Included? | No |
| Material | Polypropylene |
| Sterility | Non-Sterile |
| Well Shape | V-shaped |
| Well Volume | 110 mL |
| Working Volume | 10 - 100 mL |
Pipetting reservoir with a single well of 100 mL total volume, for pipetting, multi-channel pipetting and automated liquid handling. Designed to fit low volume (50 µL) or less automated pipetting tips.
Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
Product information
Overview
This natural polypropylene, low profile reservoir has a pyramid shaped bottom for efficient aspiration. Designed for low volume, 50 µL or less, tips used on automated pipetting stations.
Produced under cleanroom conditions, the reservoirs are pretreated to remove any static charge and have a smooth surface, low retention treatment. These reservoirs are for general lab use, and PCR preparation. The reservoirs are DNase, RNase free and free of DNA and PCR inhibitors.

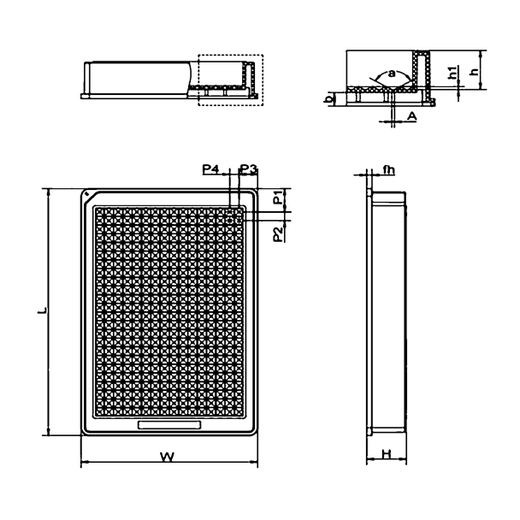

Reservoir and well dimensions
Reservoir format: 384-well
| Description | Specification |
|---|---|
| Number of rows | 1 |
| Number of columns | 1 |
| Well volume | 110 mL |
| Recommending working volume | 10 ml – 100 mL |
| Height (mm) | 127.76 |
| Length (mm) | 85.47 |
| Width (mm) | 19.2 |
| Skirt Height (mm) | 2.6 |
| Well depth from top (mm) | 13.5 |
| Well depth from edge (mm) | 1.0 |
| Pipette aspiration area (mm) | 0.8 |
| Angle aspiration area (mm) | 122.00 |
| Bottom height aspiration area (mm) | 3.5 |
| A1 side offset (mm) | 12.13 |
| Well diameter (mm) | 4.5 |
| A1 to top offset (mm) | 8.99 |
| Well diameter (mm) | 4.50 |
Specifications
| Color |
Natural
|
|---|---|
| Well Shape |
V-shaped
|
| Well Volume |
110 mL
|
| Working Volume |
10 - 100 mL
|
| Application |
Compound storage
|
|---|---|
| Automation Compatible |
Yes
|
| Instrument Compatibility |
Fontus Workstation
JANUS G3 Workstation
Sciclone G3 Workstation
Zephyr G3 Workstation
|
| Lids Included? |
No
|
| Material |
Polypropylene
|
| Packaging |
5 stacks of 10 reservoirs
|
| Product Group |
Reservoirs
|
| Shipping Conditions |
Shipped Ambient
|
| Sterility |
Non-Sterile
|
| Surface Treatment |
Anti-static
DNase, RNase free
|
Image gallery
Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
Low Profile-384 Polypropylene V-bottom Reservoir, 100 mL, case of 50
