JANUS G3 BioTx Pro Workstation

Affordable and compact, JANUS™ G3 BioTx Pro Automated Workstations enable consistent, time-saving small-scale protein purification and sample preparation for analytical protein characterization required to support quality by design experimentation for upstream and downstream processes.Expression optimizationCell line selectionPurification process developmentBioanalytical sample prep
For research use only. Not for use in diagnostic procedures.
Part #: YJS80P1
Model:
JANUS™ G3 BioTx Pro Workstation
Pick a product variant
Model: JANUS™ G3 BioTx Pro Workstation
Part #: YJS80P1
Request information

Loading...

Overview

The JANUS™ BioTx Pro Workstations are developed as intuitive, flexible, automated instruments capable of performing parallel small-scale analytical protein purification. A graphical user interface was developed to accommodate a variety of screening experiments designed to determine the optimal conditions for purification of biotherapeutic proteins using small-scale commercially available ion exchange and affinity chromatography solutions.

Three modes of small scale protein purification can be automated on a single platform:

  • PhyNexus PhyTips®
  • GE Healthcare Life Sciences PreDictor™ plates
  • Media Scout® RoboColumns

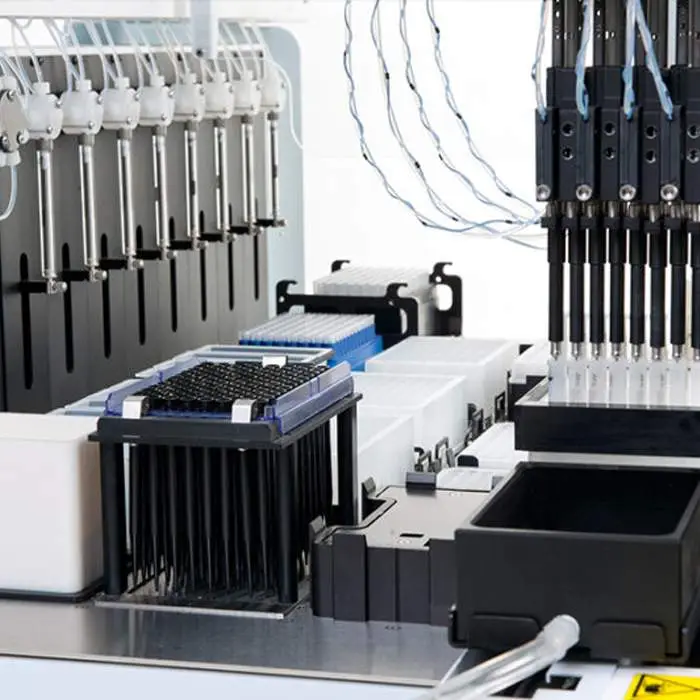

The JANUS G3 BioTx Pro Workstation includes:

  • Multiple protein purification techniques on a compact and affordable platform
  • 12 Deck positions with independent 8-channel multiple dispensing pipetting arm
  • Automated plate::shuttle for fraction collection with user-defined fraction volumes to match your needs

Specifications

Dimensions 43.0 in (W) x 33.0 in (D) x 34.0 in (H)
Weight
95.0 kg
21CFR Compatible
Yes
Application
Bioanalytical Sample Preparation
Cell Line Selection
Expression Optimization
Protein Purification
Purification Process Development
Sample Prep
Automation Compatible
Yes
Brand
JANUS
Model
JANUS™ G3 BioTx Pro Workstation
Pipetting Arms
Varispan
Pipetting Module
8-Tip Varispan
Research Areas
Drug Development & Manufacturing
