In a pooled CRISPR drug-gene interaction screen, we can apply two different selection mechanisms depending on whether we want to probe for gene perturbations which create resistance or sensitivity to the drug.
Resistance: positive selection screening
To find resistance hits, i.e., genes that when knocked out (CRISPRko), knocked down (CRISPRi) or overexpressed (CRISPRa) create a phenotype with improved cellular fitness that will become enriched as the resistance screen progresses, we apply a high drug pressure at a near-lethal dose to create the appropriate growth inhibition conditions, ideally between 70-90% (Figure 1). This will ensure that cells harboring a certain perturbation conferring drug resistance are more likely to survive and therefore that phenotype will be enriched in the total cell population relative to more sensitive phenotypes which become depleted. This would be detected during NGS analysis by comparison between the drug-treated and control end-point cell populations.
Resistance screens can be utilized throughout drug-development pipelines, including the identification of markers to stratify patients based on their genetic profile that would place them in the appropriate treatment groups. Additionally, identification of resistance genes can aid in the generation of combinatorial treatment strategies that would overcome resistant phenotypes.
Sensitivity: negative selection screening
To find sensitivity hits, i.e., genes that when knocked out (CRISPRko), knocked down (CRISPRi) or overexpressed (CRISPRa) create a phenotype with reduced cellular fitness that will be depleted as the sensitivity screen progresses, we must apply a moderately low drug pressure to create a growth inhibition around 10-30%. This is because in a sensitivity or negative selection screen, we aim to find a phenotype that is being lost in the population due to its increased sensitivity to the effects of the drug being used.1 By applying a consistently small drug pressure, we have an ideal assay window for sensitivity screens (Figure 1) as it provides confidence of target engagement by having a measurable impact on growth inhibition, whilst providing a low drug pressure to identify only the perturbations that are the most sensitive to the drug.
To improve screen quality in a sensitivity or negative selection screen, we can benefit from choosing a library with a higher number of guides per gene1 to provide a more statistically robust experimental set up for interrogation depth.
During drug-development pipelines, sensitivity screens can be helpful to identify gene perturbations that sensitize resistant cells to the effects of a drug, thus suggesting synergies between multiple therapeutic strategies and aiding in the identification of patients who would benefit from a selected treatment.
Other considerations
To identify effective negative- or positive-screen doses, it is vital to do a pre-screen evaluation, performing a thorough investigation of multi-dosing regimens (multiple doses, over extended time periods) with the compound of interest to identify an appropriate screen pressure and understand the cell line response over time.
When performing a sensitivity screen, the use of 10-30% growth inhibition is recommended to identify genetic perturbations sensitive to the drug which can potentially enable the identification of early onset resistance hits, albeit with lower confidence than a screen performed at the appropriate drug pressure for a resistance screen (growth inhibition around 70-90%). These additional resistance hits from a sensitivity screen often confirm the drug effect on a known target (by knocking out the drug target, one would expect resistance to the drug would start to develop).
The opposite situation, analyzing sensitivity hits from a resistance screen, is not usually as informative as the elevated drug pressure used to cause resistance conditions conflicts with obtaining the optimal window for the detection of genes dropping out from the population (Figure 1).

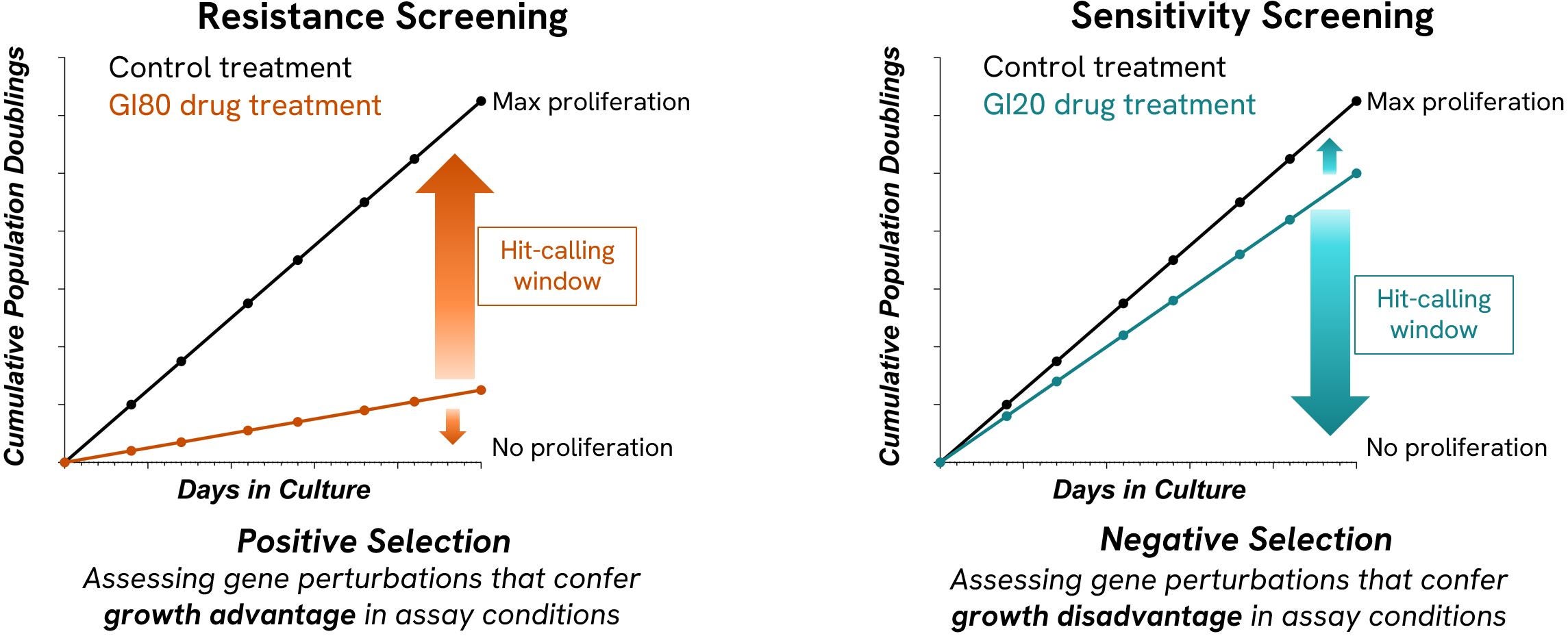

Figure 1 - In a positive selection screen we look for the enrichment of genes resistant to the drug when there is high drug pressure (70-90% GI), this creates the optimal window to identify resistance hits. In a negative selection screen, we use a lower drug pressure 10-30% to maximize the window for the detection of genes dropping out from the cell population.
Understanding the appropriate screening modality is critical for successful CRISPR drug-gene interaction studies. By using high drug pressure for resistance screens and lower pressure for sensitivity screens, you can maximize the biological insights gained from your experiments. Thorough pre-screen evaluation and appropriate library selection are key investments that will significantly enhance the quality and reliability of your screening results.
Looking for help with a functional genomics project? Find out more about how our preclinical services team can support you.
References:
- Blanck M, Budnik-Zawilska MB, Lenger SR, McGonigle JE, Martin GRA, le Sage C, Lawo S, Pemberton HN, Tiwana GS, Sorrell DA, Cross BCS. A Flexible, Pooled CRISPR Library for Drug Development Screens. CRISPR J. 2020 Jun;3(3):211-222. https://doi.org/10.1089/crispr.2019.0066
