Cytomegalovirus neutralization assay using different sera measured by counting fluorescently labeled infected cells
Detection of Alexa Fluor 647 (AF647)-labeled infected host cells

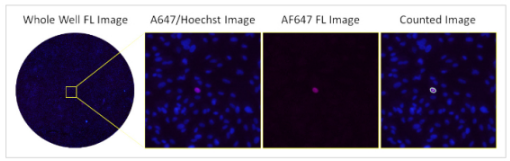

The example image below shows the low number of infected cells with high serum concentration in fluorescence using AF647.
Fluorescent images of AF647 labeled infected cells with high serum

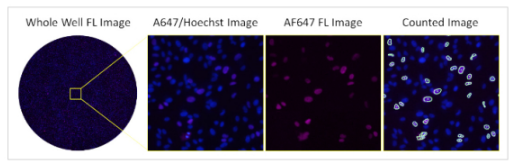

The example image below shows the high number of infected cells with low serum concentration in fluorescence using AF647
Fluorescent images of AF647 labeled infected cells with low serum

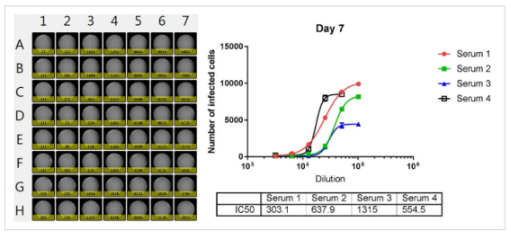

The number of infected cells are counted and dose response curves are generated for 4 different sera, where the IC50 values are calculated. The Celigo™ image cytometer is able to output the counted results directly to Microsoft Excel for analysis
Plate-view of imaged and analyzed wells, and serum dilution-dependent neutralization plot in respect to the number of AF647-labeled infected cells
For research use only. Not for use in diagnostic procedures.
